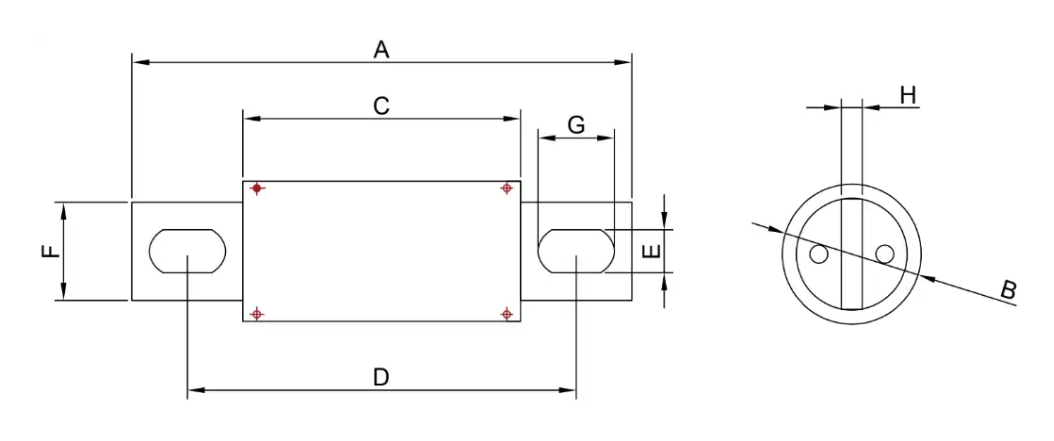

Dimensions (mm)

S.	Amps	A±1.5	B±1	C±1	D±1.5	E±1.5	F±0.5	H±0.5	G±0.5
26R	30-150A	127.00	26.00	79.00	103.00	8.50	20.00	3.00	13.00
38R	125-400A	142.00	38.00	85.00	113.50	10.50	25.00	6.00	20.00
51R	225-800A	145.00	51.00	88.00	116.50	10.50	40.00	6.00	20.00

Description

• Design For DC Applications
• Excellent DC Performance
• Low arc voltage and low energy let-through (I2t)
• Superior cycling capability
• Low Watt Losses

Standards & Approvals

• Refer To UL248.13 or IEC60269.4
• Approvals: , CE
• RoHS Compliant

Features & Benefits

• Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
• Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
• Can be applied in parallel to realize greater ampacity within sizing guidelines.
• Excellent power of resisting voltaic impingement and environmental temperature tolerance.
• Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current			Catalog no.	Average @50KA/1000Vdc		Watts Loss	Approvals
				Melting A2S	Clearing A2S		ROHS
26 mm diameter case	30	30A	GFEVF1000-30A-26R	158	1360	9	●
	35	35A	GFEVF1000-35A-26R	218	1751	10	●
	40	40A	GFEVF1000-40A-26R	312	2189	11	●
	50	50A	GFEVF1000-50A-26R	489	3064	14	●
	60	60A	GFEVF1000-60A-26R	697	4378	16	●
	70	70A	GFEVF1000-70A-26R	1144	6041	17	●
	80	80A	GFEVF1000-80A-26R	1612	8492	19	●
	90	90A	GFEVF1000-90A-26R	1976	9888	20	●
	100	100A	GFEVF1000-100A-26R	2912	14420	22	●
	125	125A	GFEVF1000-125A-26R	4536	28462	27	●
	150	150A	GFEVF1000-150A-26R	6218	35438	42	●

Rated Current			Catalog no.	Average @50KA/1000Vdc		Watts Loss	Approvals
				Melting A2S	Clearing A2S		ROHS
38 mm diameter case	125	125A	GFEVF1000-125A-38R	5040	32582	23	●
	150	150A	GFEVF1000-150A-38R	6615	41891	36	●
	175	175A	GFEVF1000-175A-38R	7875	60509	43	●
	200	200A	GFEVF1000-200A-38R	12285	74472	46	●
	225	225A	GFEVF1000-225A-38R	14320	84199	59	●
	250	250A	GFEVF1000-250A-38R	15624	103219	77	●
	275	275A	GFEVF1000-275A-38R	16800	111800	84	●
	300	300A	GFEVF1000-300A-38R	25415	149404	94	●
	350	350A	GFEVF1000-350A-38R	34477	209377	104	●
	400	400A	GFEVF1000-400A-38R	43083	289502	112	●

Rated Current			Catalog no.	Average @50KA/1000Vdc		Watts Loss	Approvals
				Melting A2S	Clearing A2S		ROHS
51 mm diameter case	225	225A	GFEVF1000-225A-51R	17184	91941	59	●
	250	250A	GFEVF1000-250A-51R	20160	113848	72	●
	275	275A	GFEVF1000-275A-51R	23655	136780	78	●
	300	300A	GFEVF1000-300A-51R	29857	157932	80	●
	350	350A	GFEVF1000-350A-51R	41927	222453	89	●
	400	400A	GFEVF1000-400A-51R	54874	309150	96	●
	450	450A	GFEVF1000-450A-51R	61057	337500	111	●
	500	500A	GFEVF1000-500A-51R	67209	351880	136	●
	550	550A	GFEVF1000-550A-51R	70450	389650	142	●
	600	600A	GFEVF1000-600A-51R	73658	495196	150	●
	630	630A	GFEVF1000-630A-51R	82777	518336	163	●
	700	700A	GFEVF1000-700A-51R	201653	634500	208	●
	800	800A	GFEVF1000-800A-51R	239085	744930	241	●

• ：Time Constant：2.5+0.5 ms

Applications

• Electrical Energy Storage
• Disconnect or Maintenance Safety Disconnect
• EV/HEV
• Battery Pack Protection
• Backup Protection For DC Relay
