產品展示當前位置：首頁 > 產品展示

GFEVT500-K-51E高速熔斷器100A-800A 500V dc

[附件: Download]

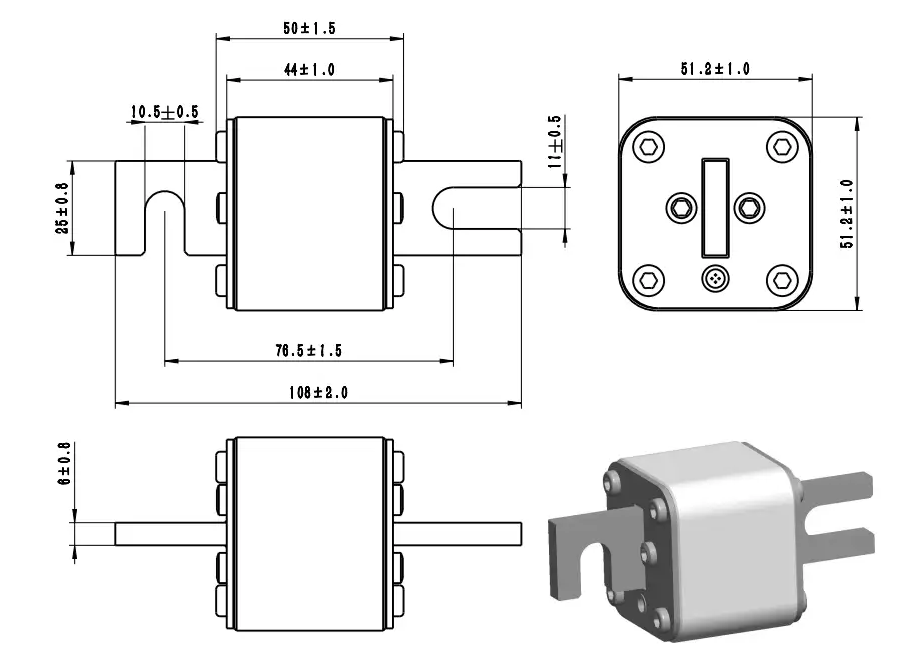

Dimensions (mm)
GFEVT500-xxx KN-51E

GFEVT500-xxx K-51E

Description

Design For DC Applications
Excellent DC Performance
Superior Cycling Capability
Low Watt Losses

Standards / Approvals

Refer To UL 248.1 / UL 248.13
IEC 60269.1 / IEC 60269.4
Reach Declaration Available Upon Request
RoHS Compliant

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No.	Fuse Amps	Size	Average @50KA/500Vdc		Power Loss (W)
Part No.	Fuse Amps	Size	A2s Melting	A2t Clearing	100%
GFEVT500-100K-51E	100	1#	820	7,370	23
GFEVT500-125K-51E	125	1#	1,340	11,910	28
GFEVT500-160K-51E	160	1#	2,410	21,550	35
GFEVT500-200K-51E	200	1#	3,030	26,910	38
GFEVT500-250K-51E	250	1#	5,050	45,680	52
GFEVT500-275K-51E	275	1#	6,140	59,220	55
GFEVT500-315K-51E	315	1#	7,910	75,060	64
GFEVT500-350K-51E	350	1#	10,520	100,260	68
GFEVT500-400K-51E	400	1#	15,060	143,820	72
GFEVT500-450K-51E	450	1#	20,830	205,160	78
GFEVT500-500K-51E	500	1#	26,760	264,150	87
GFEVT500-550K-51E	550	1#	36,520	363,150	92
GFEVT500-630K-51E	630	1#	53,800	554,220	100
GFEVT500-700K-51E	700	1#	71,550	742,770	102
GFEVT500-800K-51E	800	1#	99,540	1,035,000	113
Optional base indicator, the standard product is the “Default” configuration. Default: K–with fuse indication, e.g.: GFEVT500-630K–51E; Optional: KN–without fuse indication, e.g.: GFEVT500-630KN-51E;

91麻豆精品国产综合久久久_久久精品美女_一本一道久久a久久精品综合_国产卡一卡二卡三

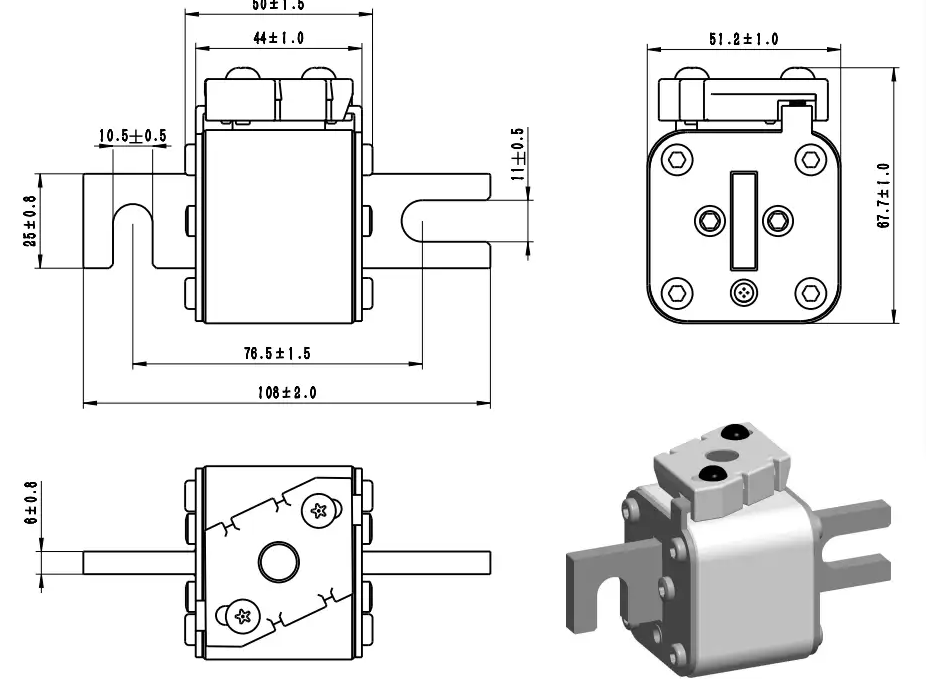

Dimensions (mm) GFEVT500-xxx KN-51E
